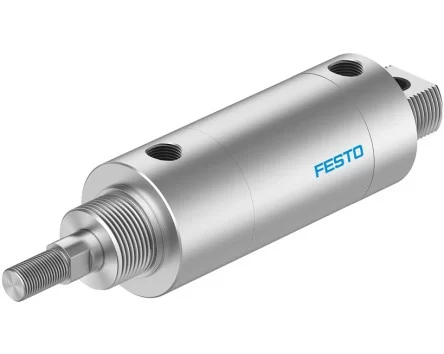

The Festo DPRA is Festo’s direct interchange round-body pneumatic cylinder. This product was designed to meet the specific requirements of this style of actuator: readily available with consistently short lead times, cost optimized, and flexibility for special modifications to suit almost any general automation application. The DPRA cylinder is offered in a complete range of 12 bore sizes and a variety of stroke lengths up to 12” with a wide selection of models and options as standard.
More performance and reliability
Superior performance due to 303 stainless steel piston rod and 304 stainless housing providing low friction and long life. Oil-impregnated piston rod bushing and low friction U-cup seals create a pneumatic cylinder with efficient performance, superior service life and reliability. Premium lubrication provides excellent running characteristics and outstanding efficiency.
More applications
DPRA offers direct interchangeability within the product classification of non-repairable round-body cylinders. Available in a wide range of bore sizes from 3/4″ to 2.5″ stroke lengths up to 12″ as standard. Standard 303 stainless steel pistod rod provides corrosion resistance in harsh environments. Optional high temperature and low temperature seals are available for special environments. An extensive range of variants and mounting accessories for most applications.
